Cabin Y

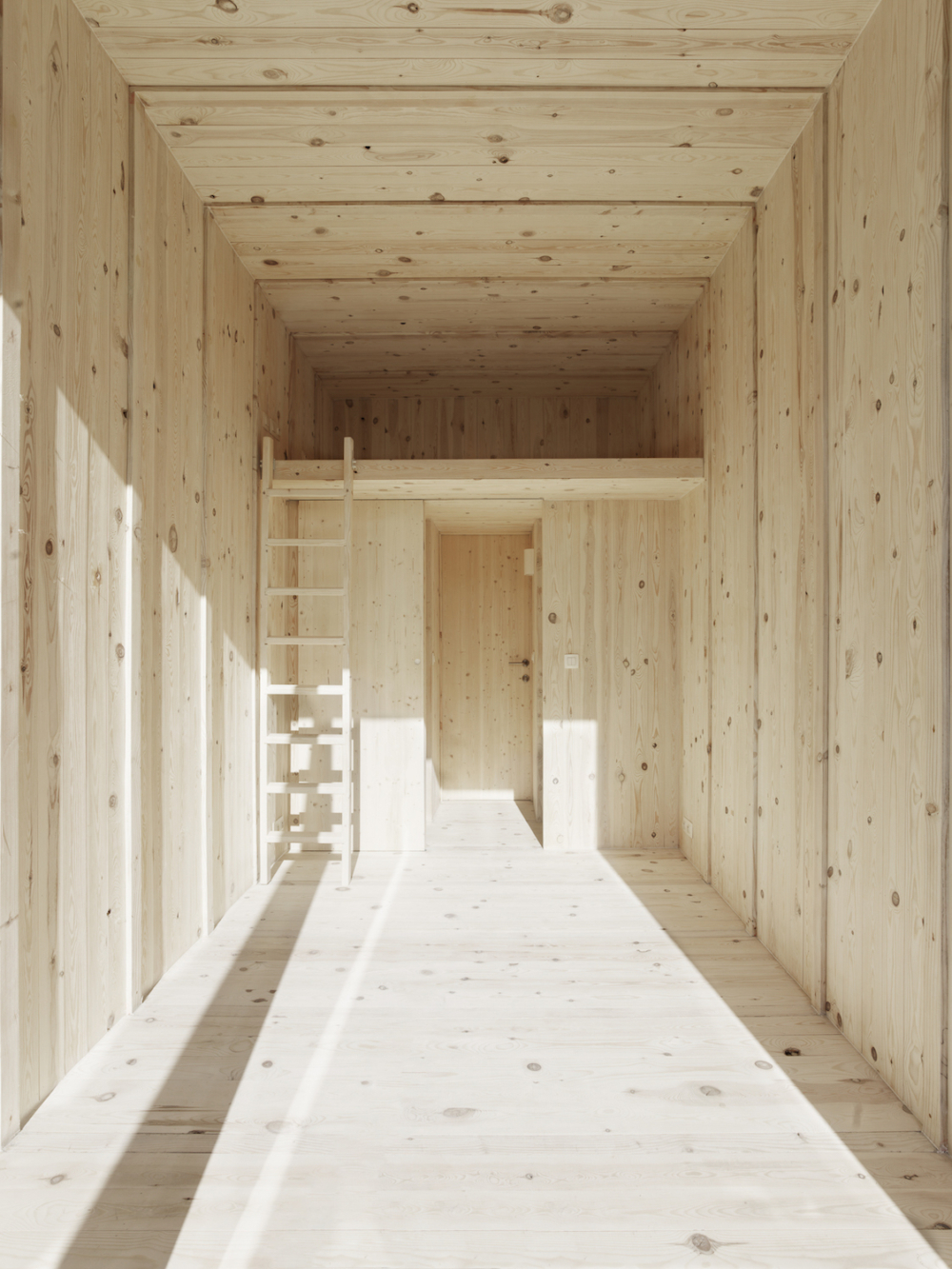

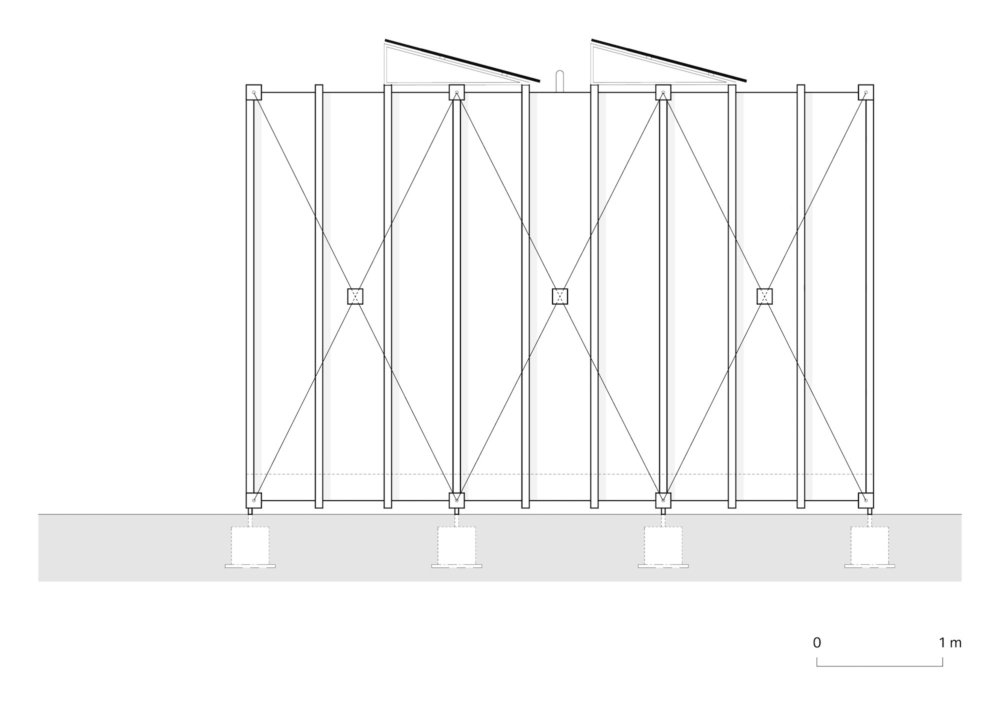

Cabin Y consists of a beam-shaped volume with a footprint of 6 by 2,4 metres and a height of 3,4 metre and is therefore easily transportable with a truck with a flatbed trailer. The goal was to make the cabin as light as possible. The construction principle consists of an intelligent system of ten wooden porches that are connected by stainless steel tension cables in an X-shape, whereby the tensile and compressive forces are neutralized when lifting with a crane. Between the wooden porches there is thermal insulation installed. The exterior is executed in burnt larch wood and for the interior white oiled pine was used.

The unit is equipped with a toilet, a shower and duplex sleeping accommodation. Photovoltaic solar panels on the roof provide the living unit with renewable energy. The front facade is entirely in glass with a steel frame as pivoting door.
